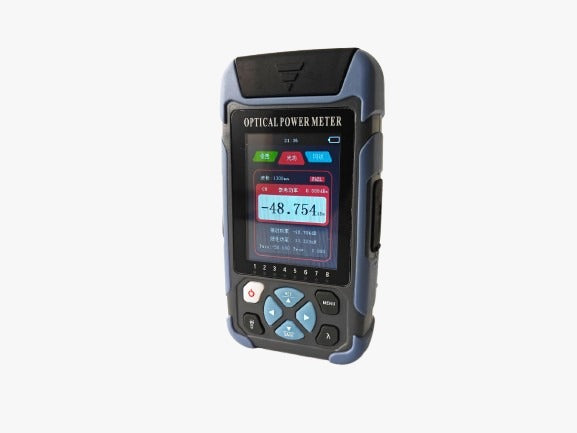

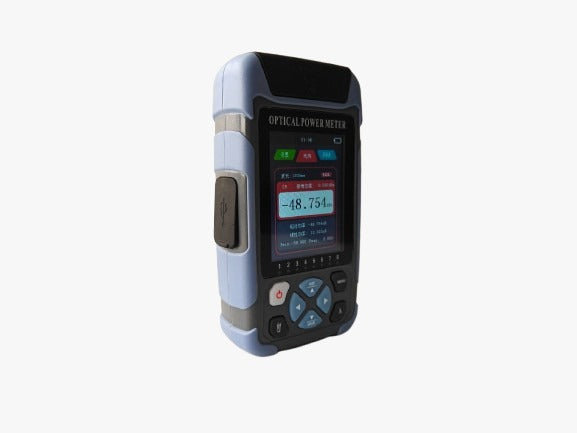

CIRCON H30 Optical Power Meter

CIRCON H30 Optical Power Meter

$250.00 USD
$250.00 USD
Sale Sold out
Shipping calculated at checkout.

The H30 OPM+VFL Integrated Machine by Hi cloud is a multifunctional optical testing device designed for precise optical power measurement, visual fault location, and optional RJ45 cable tracking and laser ranging. With a 1mm large photosensitive surface detector and a 2.8-inch color LCD, it combines ergonomic design with advanced functionality for field technicians and engineers working in fiber optic networks

Key Features:

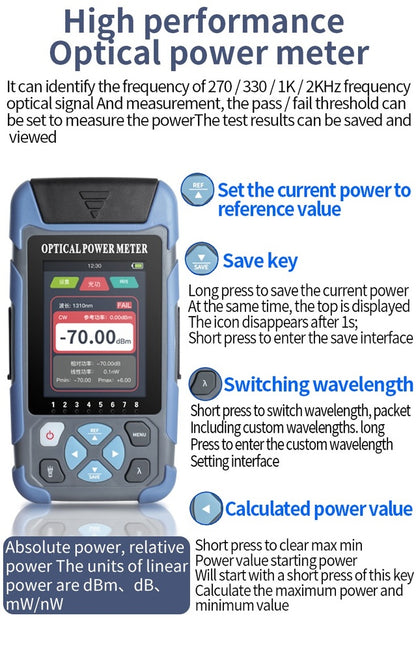

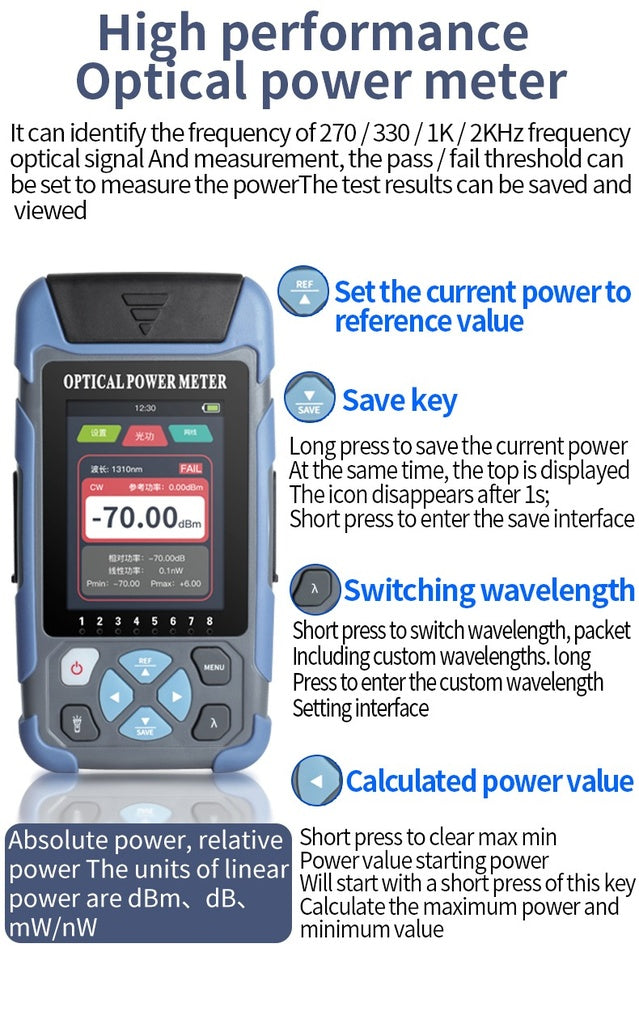

Optical Power Meter:

  • Wavelength range: 800–1700nm
  • Detector type: InGaAs
  • Power measurement range: +10 to -70dBm
  • Measurement precision: ±5% ±26dBm
  • Standard wavelengths: 850, 980, 1300, 1310, 1490, 1550, 1650nm
  • Frequency identification: 270Hz, 330Hz, 1kHz, 2kHz
  • Display resolution:
    • Linear: 0.01%
    • Logarithmic: 0.01/0.1dBm
  • Storage capacity: 1000 records
  • Connectors: Universal joint / FC / SC / ST

Visual Fault Locator:

  • Wavelength: 650±30nm
  • Output power: ≥1mW
  • Modes: CW / 1Hz / 2Hz
  • Connectors: Universal joint / FC / SC / ST

RJ45 Cable Tracking (Optional):

  • Test range: ≤300m
  • Tracking modes: Line, live line, no tone search
  • Supports single and continuity measurement

Laser Ranging (Optional):

  • Wavelength: 650±30nm
  • Test range: 0.05–40m
  • Precision: ±2mm

Display & Interface:

  • Screen: 2.8-inch color LCD, 240×320 resolution
  • Wireless interface: Bluetooth (optional)
  • Data upload: USB supported

Power & Environmental:

  • Battery: Rechargeable, 12V/1 hour charge
  • Battery life: ≥24 hours
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -20°C to +70°C
  • Humidity: Non-condensing
  • Dimensions: 140mm × 73mm × 37mm

Product Features:

  • Large photosensitive surface for enhanced detection
  • Clear dark current and automatic frequency identification
  • Max/Min power tracking and automatic wavelength recognition
  • Adjustable refresh rate for resolving power
  • User-customizable wavelengths (up to 50)
  • Optional flashlight and Bluetooth connectivity
  • Optional RJ45 sequence and tracking functions
  • Optional laser ranging capability

Applications:

  • Optical signal power measurement
  • Fiber link loss and continuity testing
  • Fault diagnosis in fiber optic networks
  • Optical cable construction and maintenance
  • Optical CATV and sensing systems
  • Passive device testing (e.g., splitters, couplers, switches)



The H30 OPM+VFL Integrated Machine is a versatile and durable solution for professionals requiring reliable optical testing tools in the field. Its modular options and high-precision capabilities make it suitable for a wide range of fiber optic applications



Data Sheet Click To Open.
