EMTELLE 144F Mini Cable G652D 200u Black (5.4mm) 2000m

75427/2KM

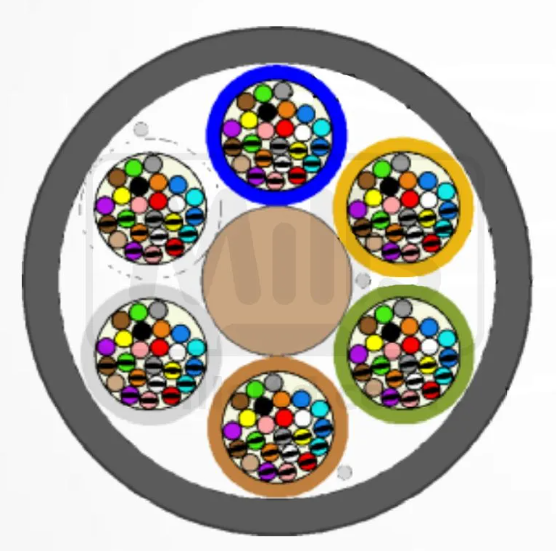

This cable features a stranded core reinforced with a central FRP strength member and gel-filled loose tubes housing optical fibers. The core is secured with water-swellable yarns, while the outer sheath is crafted from durable black polyamide PA12. It contains 144 optical fibers arranged in six loose tubes, each with 24 fibers. Key dimensions include a 5.4mm overall diameter, 0.4mm sheath thickness, and 2000 meters length. The optical fibers are Corning SMF 28®ULTRA and SMF 28+®BB, compliant with ITU-T G.652D and G.657.A1 standards, ensuring precise core-clad concentricity and consistent cladding dimensions for optimal performance.

Data Sheet Click To Open.
