EMTELLE 24F Mini Cable G657A1 Black (5.8mm) 4000m

90693/4KM

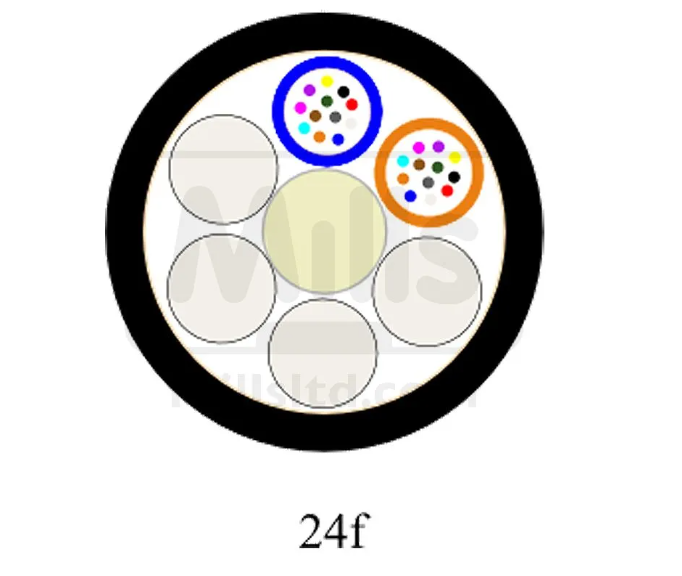

The 24F Mini Cable G657A1 Black (5.8mm) is engineered for efficient installation into microducts using blowing techniques. Featuring a compact 5.8mm diameter and weighing 24.5g per meter, this metal-free cable incorporates 24 single-mode G657A1 fibers arranged in two gel-filled loose tubes with additional fillers for structural integrity. Its HDPE outer sheath, 0.6mm thick, and a 1.6mm fiberglass reinforced plastic strength member ensure durability. Designed to withstand a maximum installation tension of 475N and operational tension of 55N, it maintains fiber strain within safe limits. The cable’s minimum bend radius is 19 times its diameter, supporting reliable performance in demanding environments. Available in 4000m lengths, it is marked for easy identification and measurement.

Data Sheet Click To Open.
