EMTELLE 2FU G657A1 SM Blown Fiber 2000m

9506/2KM

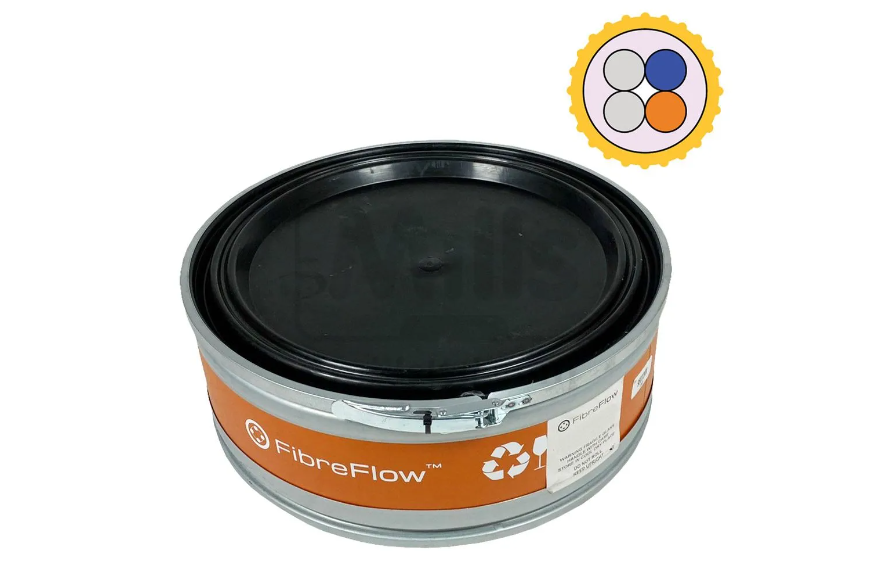

This 2FU G657A1 singlemode blown fiber is engineered for deployment within microduct systems. It features a 1.12mm diameter and weighs 0.9g per meter, with a yellow, low-friction PE outer sheath measuring 0.03mm thick. The fiber complies with ITU-T G.657.A1 standards and includes two blue and orange optical fibers plus two natural mechanical optical fibers. Designed for durability, it supports a minimum bend radius of 44 times its diameter and can withstand installation tensions up to 16N at 0.4% fiber strain. The product is metal-free and supplied in 2000-meter lengths.

Data Sheet Click To Open.
