EMTELLE 48F Mini Cable G657A1 Black (5.8mm) 2000m

90409/2KM

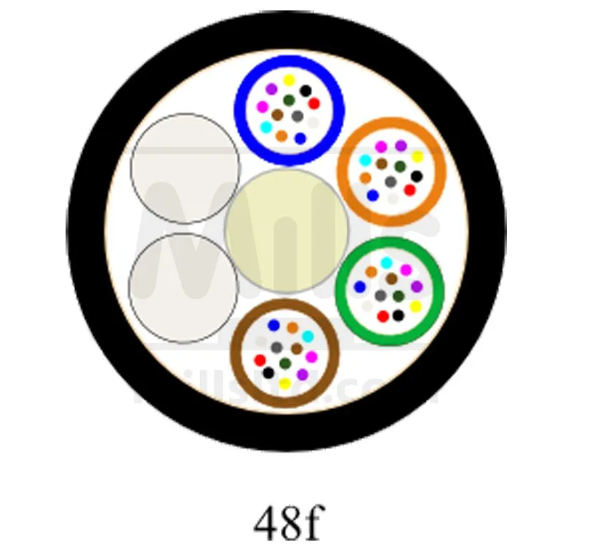

The 48F Mini Cable G657A1 Black (5.8mm) is engineered for efficient microduct installation via blowing. It features a 5.8mm diameter and weighs 25.2g per meter, with a black, metal-free HDPE outer sheath. The cable includes 48 single-mode G657A1 fibers arranged in four gel-filled loose tubes, reinforced by a 1.6mm fiberglass strength member and SZ stranding. It supports a minimum bend radius of 19 times its diameter, a maximum installation tension of 475N at 0.4% fiber strain, and an operational tension limit of 55N with zero fiber strain. The cable length is 2000 meters.

Data Sheet Click To Open.
