EMTELLE 4FU G657A1 SM Blown Fiber 2000m

9507/2KM

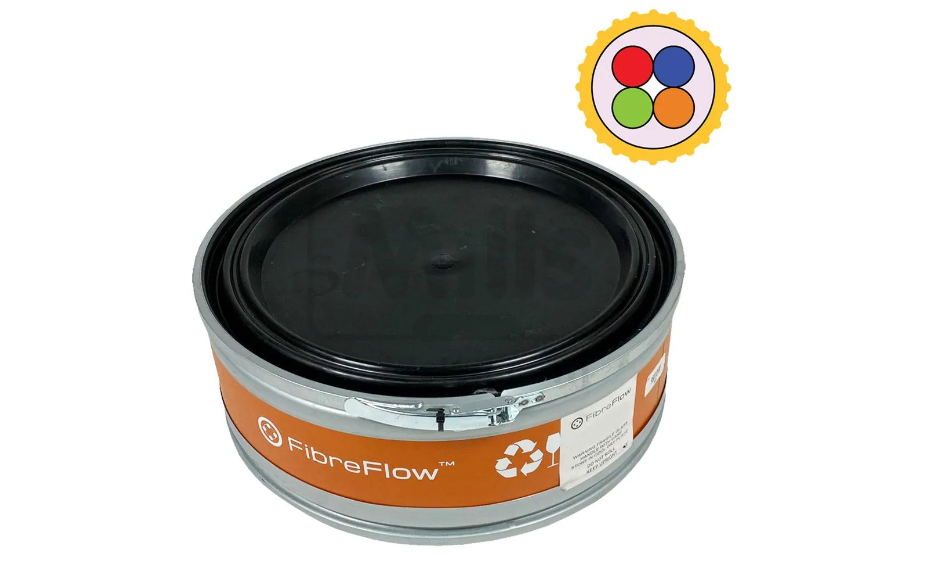

The 4FU G657A1 Singlemode Blown Fiber is engineered for deployment within microduct systems. It features a 1.12mm diameter and weighs 0.9kg per kilometer. The fiber is yellow, metal-free, and complies with ITU-T G.657.A1 standards. It includes four optical fibers in blue, orange, green, and red, protected by a low-friction PE outer sheath of 0.03mm thickness and acrylate resin encapsulation. Designed for durability, it supports a minimum bend radius of 44 times its diameter and a maximum installation tension of 16N at 0.4% fiber strain. The cable length is 2000 meters.

Data Sheet Click To Open.
