EMTELLE 72F Mini Cable G657A1 Black (5.8mm) 2000m

90408/2KM

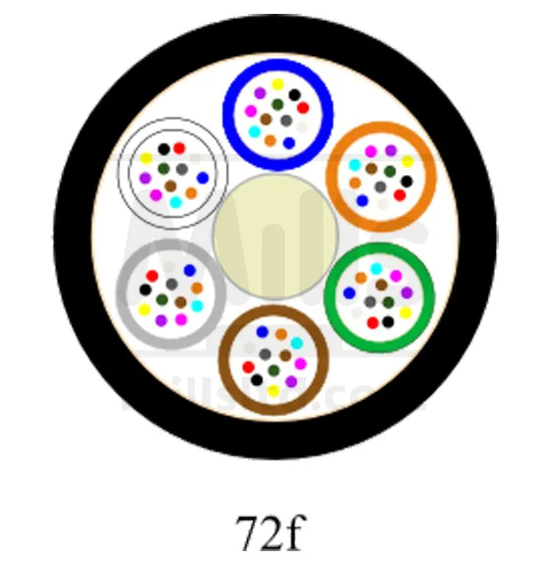

The 72F Mini Cable G657A1 Black (5.8mm) is engineered for efficient installation via blowing into microducts. It features a 5.8mm diameter and extends 2000 meters in length. Weighing 25.9g per meter, this metal-free cable has a minimum bend radius of 19 times its diameter and supports a maximum installation tension of 475N at 0.4% fiber strain. The cable core includes 72 single-mode G657A1 fibers arranged in SZ stranding within six gel-filled loose tubes. Its robust black HDPE outer sheath is 0.6mm thick, reinforced by a 1.6mm fiberglass strength member, ensuring durability and performance.

Data Sheet Click To Open.
