EMTELLE 72F Mini Cable G657A1 Black (5.8mm) 4000m

90408/4KM

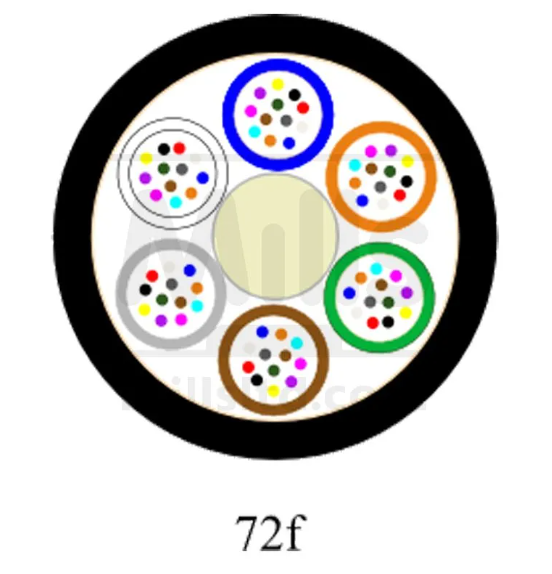

The 72F Mini Cable G657A1 Black (5.8mm) is engineered for efficient installation within microducts using blowing techniques. This 4000-meter cable features a 5.8mm diameter and weighs 25.9g per meter. It is metal-free with a minimum bend radius of 19 times its diameter, ensuring flexibility without damage. The cable supports a maximum installation tension of 475N at 0.4% fiber strain and an operational tension of 55N at zero fiber strain. Constructed with 72 single-mode G657A1 fibers arranged in loose tubes and protected by a 0.6mm thick black HDPE outer sheath, it offers robust performance for demanding fiber optic deployments.
