EMTELLE 96F Mini Cable G657A1 Black (6.2mm) 2000m

90980/2KM

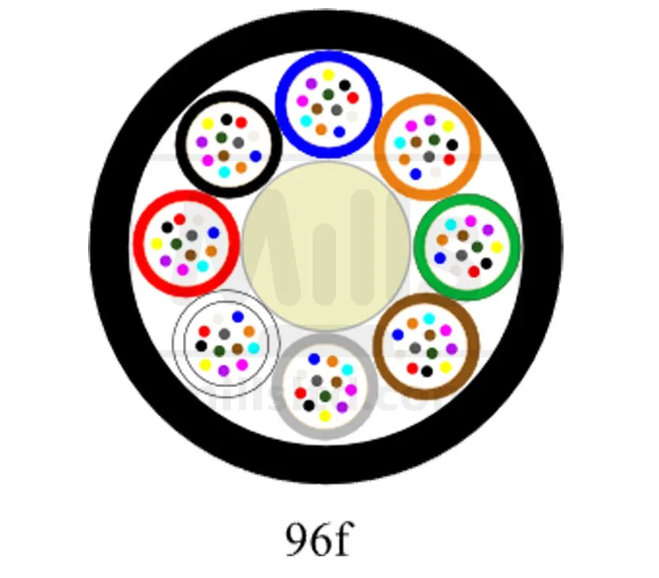

This cable is engineered for microduct installation via blowing, featuring a 6.5mm diameter and weighing 36.8g per meter. It is metal-free with a minimum bend radius of 20 times its diameter. The cable supports a maximum installation tension of 1200N at 0.4% fiber strain and an operational tension of 200N at zero fiber strain. It contains 96 single-mode G.657.A1 fibers arranged in 8 gel-filled loose tubes, protected by a 0.5mm thick black HDPE outer sheath and reinforced with a 2.6mm fiberglass strength member. The 2000-meter length is clearly marked for easy identification.

Data Sheet Click To Open.
