EMTELLE 96F Mini Cable G657A1 Black (6.2mm) 4000m

90980/4KM

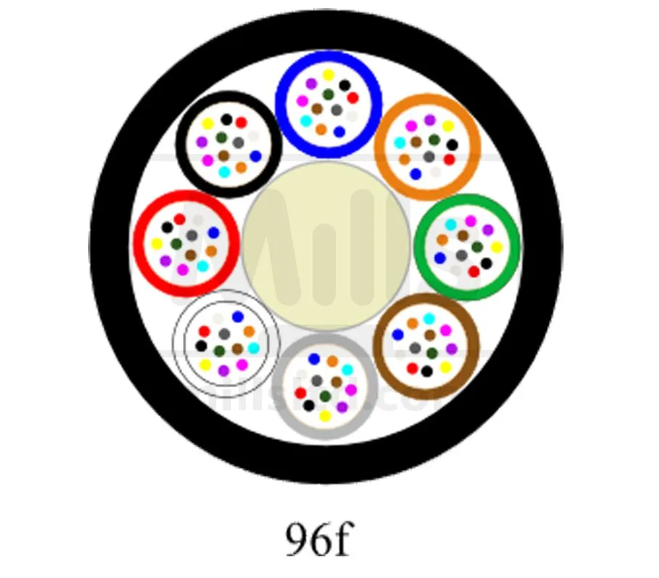

This cable is engineered for microduct installation via blowing, featuring a 6.5mm diameter and weighing 36.8g per meter. It is metal-free with a minimum bend radius of 20 times its diameter, ensuring flexibility without damage. The cable supports a maximum installation tension of 1200N at 0.4% fiber strain and an operational tension of 200N at zero fiber strain. Constructed with 96 single-mode G657A1 fibers arranged in eight gel-filled loose tubes, it has a robust HDPE outer sheath and a 2.6mm fiberglass strength member. The 4000-meter length is clearly marked for easy identification.

Data Sheet Click To Open.
