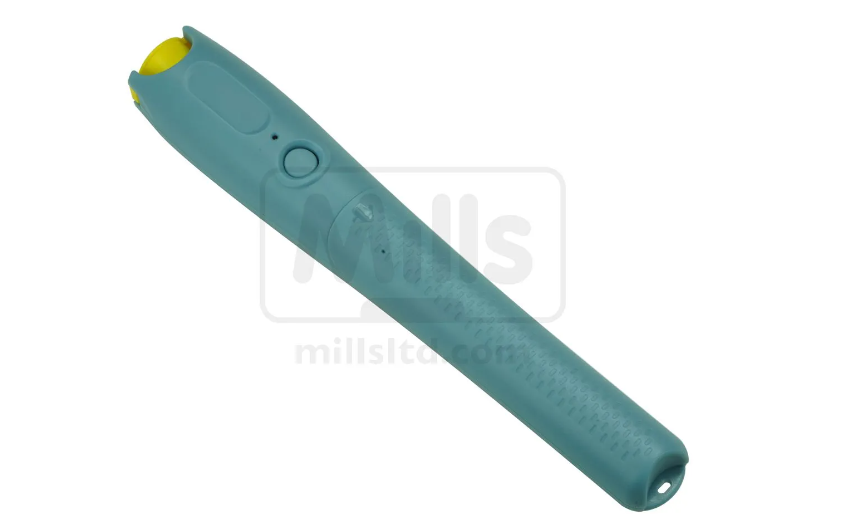

Mills Fiber Optic Visual Fault Locator 30mW

The C00-5464 Visual Fault Locator delivers a 30mW output power with a dynamic range exceeding 10km at 0 dBm. It features a slim, pen-style design with a 650 nm red visible laser diode operating in both pulsed (2Hz) and continuous wave modes. Equipped with a universal 2.5mm connector compatible with FC, SC, ST, E2000, and APC ferrules, it also includes a 1.25mm LC adaptor. Powered by 2 AA batteries (not included), this compact tool measures 180mm in length, 30mm in diameter, and weighs just 46g, making it ideal for precise fiber optic fault detection.

Data Sheet Click To Open.
