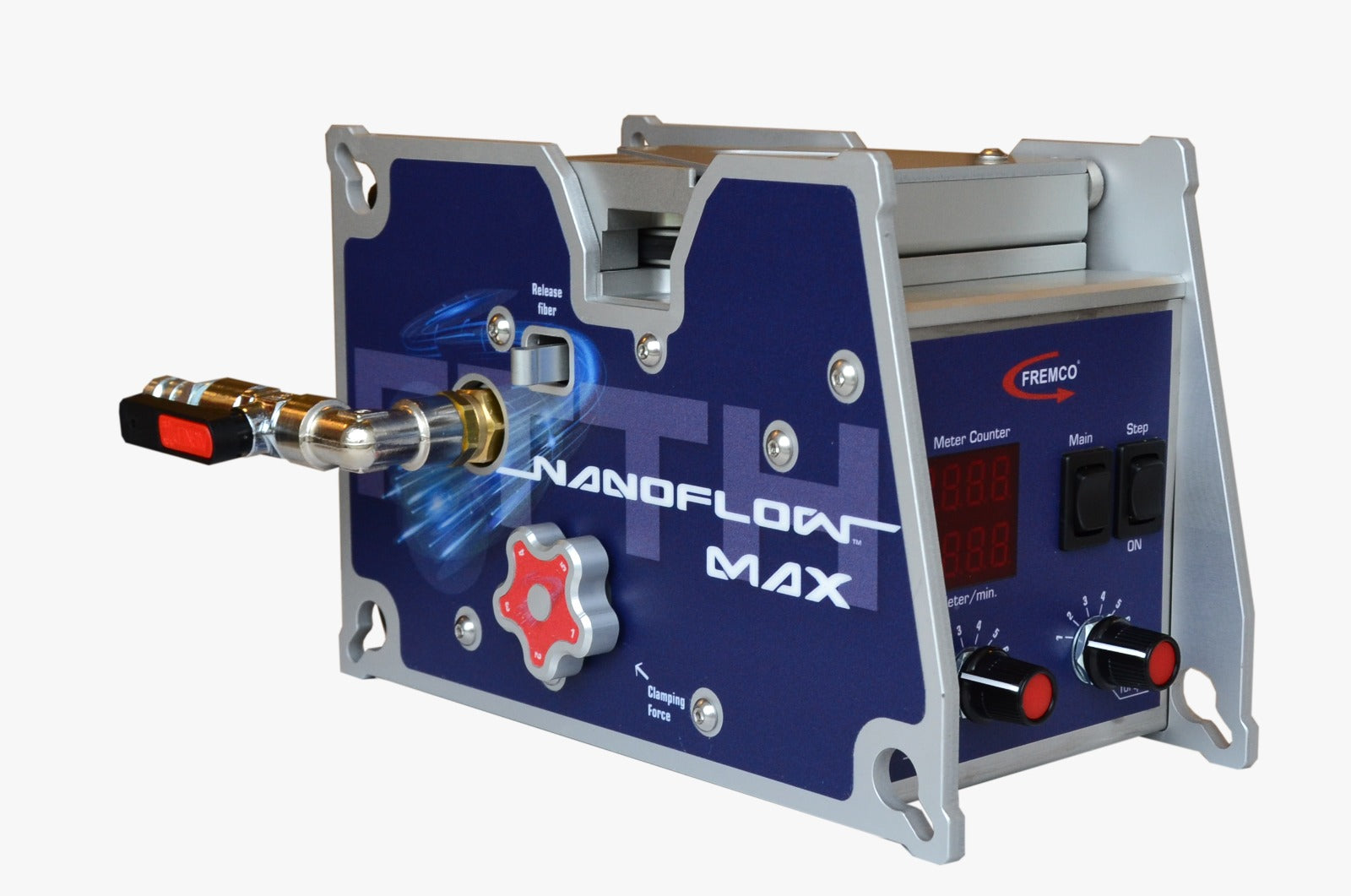

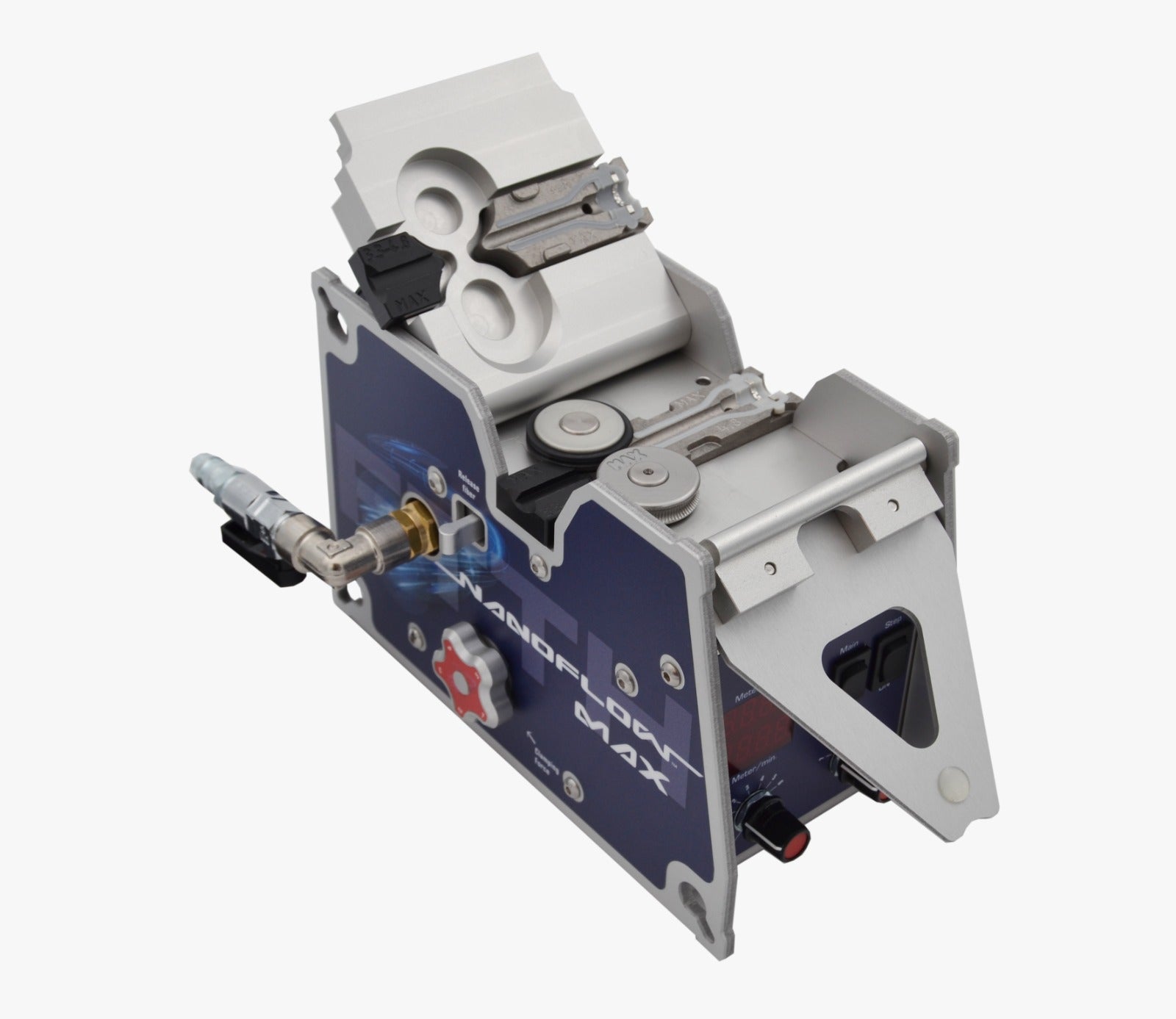

The NANOFLOW MAX is a durable and compact fiber blowing machine engineered for both blown fiber (EPFU) and micro/nano cables. Compliant with IEC testing standards, it accommodates fiber or cable diameters between 0.8 and 4.5 mm and duct sizes from 3.0 to 12.7 mm. Setup requires only 3 minutes, enabling efficient fiber blowing up to 1200 meters. Key specifications include a blowing speed of up to 125 m/min, maximum pressure of 10 bar with 200 l/min airflow, and a clamping force ranging from 14 to 29 N. The device weighs 2.8 kg (without battery) and measures 212 mm in length, 104 mm in width, and 139 mm in height.
